Cortizo TP 52 Façade

The Cortizo TP 52 Façade Curtain Wall has a great variety of mullions (from 16 to 230mm). As well as transoms (from 22.5 to 205.5mm), that solve the different aesthetic and constructive needs of any architectonic projects.

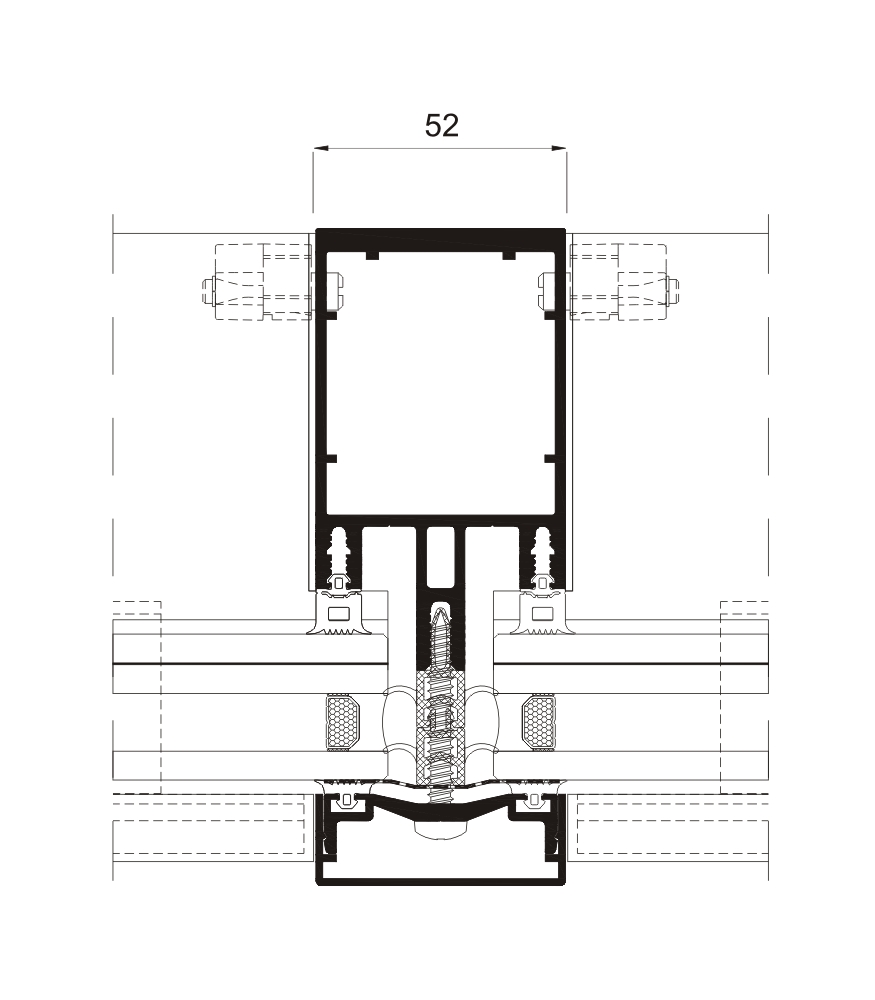

Internal seen section: 52 mm

Extensive profile range, This system’s mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal), as well as solving large and heavy glazing modulations

Water tightness elements: Drainage pipettes, tear strip gaskets and vulcanised angles.

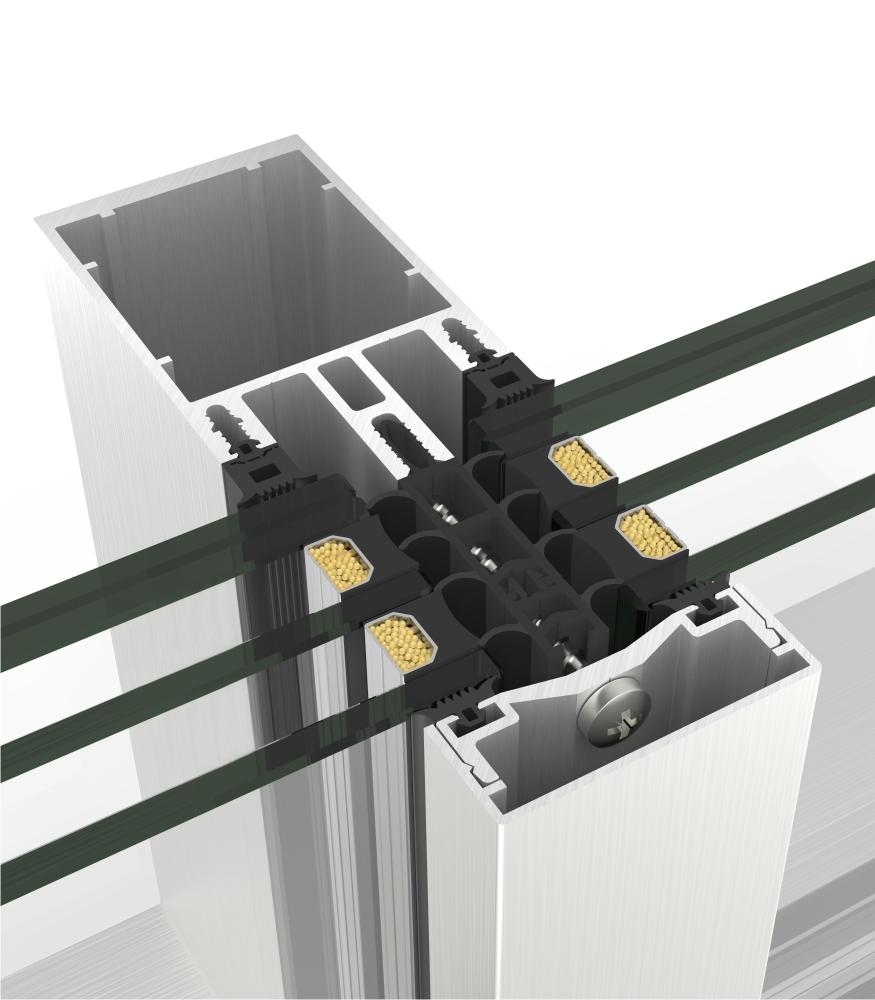

In order to fix the glass to the supporting profiles, a pressed profile is needed. The profile is screwed to the mullions and transoms, and covered with an embellisher profile (cover profile).

Excellent thermal and acoustic properties.

Cortizo TP 52 Curtain Wall

Glazing
Maximum glazing 64 mm
Mínimum glazing 4 mm

*Consult us for greater thicknesses

Opening possibilities
Turn & Tilt Hidden
Side Hung Hidden
Hidden Top Hung Projecting

Sections
Mullion 52 mm
Transom 52 mm

Profile thickness
Mullion 2.1 and 3 mm
Transom 2.1 mm

Polyamide strip length
6, 12 & 30 mm stackable profiles

Minimum / Maximum opening dimensions

Hidden Top hung
Min. Width (L) = 500 mm
Min. Height (H) = 650 mm
Maximum Width (L) = 2500 mm
Max. Height (H) = 2500 mm

Hidden Parallel Projecting
Minimum. Width (L) = 530 mm
Min. Height (H) = 530 mm
Max. Width (L) = 2000 mm
Min. Height (H) = 3000 mm

Hidden Side Hung / Turn & Tilt
Min. Width (L) = 500 mm
Min. Height (H) = 600 mm
Max. Width (L) = 1400 mm
Min. Height (H) = 1900 mm

Maximum weight / sash
Top hung 180 kg Hidden
Parallel Projecting 200 kg Hidden
Hidden Side Hung / Turn & Tilt 100 kg

Maximum weight of fixed lights
750 kg

Consult maximum weight and dimensions according to typologies

Covers
85 mm deep elliptical cover
H shape cover, 34 mm deep
Rectangular cover: 14, 19 100 & 145 mm deep
Pyramid shape cover, 155 mm deep

Finishes
Powder coating / Anodised
