COR VISION SLIDING
SLIDING DOOR SYSTEM
Choose your product...

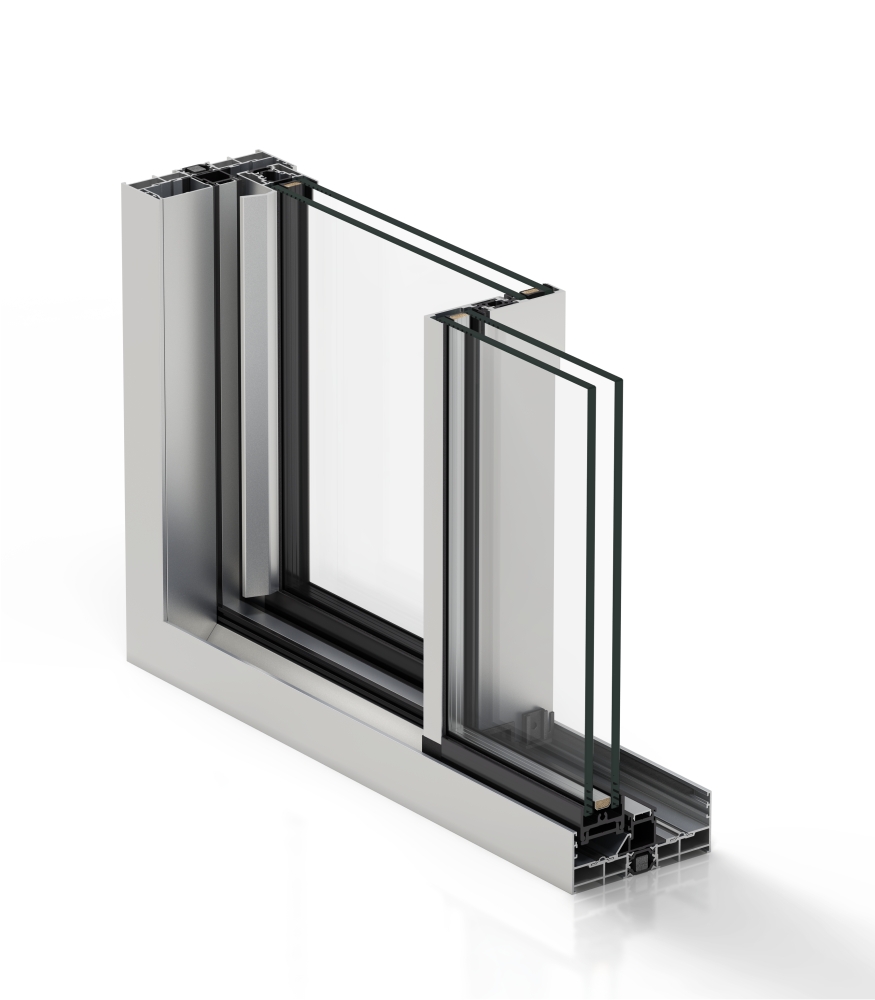

COR Vision Sliding
The COR Vision Sliding system has an interlock profile of just 20 mm, with a maximum surface glazing area.
Possibilities:
> Embed the bottom, top and side frames within the wall
> Pocket system
> Sash encounters at a 90° corner without a mullion
Cortizo Vision Sliding
Maximum glazing thickness
30 mm
Opening possibilities
Up to 6 sashes
Up to 3 rails
1 sash + 1 fixed / 2 sashes + 1 fixed
Pocket solution possibility in 1, 2, 3 & 4 sashes
Possibility of interior and exterior corner at 90º without mullion
Sections
Frame – 116 mm – 182 mm 3 rails
Sash – 37 mm
Profile thickness
Door 1.7 mm
Polyamide strip length
From 16 to 24 mm
Maximum dimensions/sash
Width (L) = 2,500 mm
Height (H) = 3,000 mm
Maximum weight/sash
320 kg
Please consult regarding maximum weight and dimensions for other opening types
Finishes
Dual colour systems available
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
