MILLENNIUM PLUS 70 DOOR

DOOR SYSTEM

Choose your product...

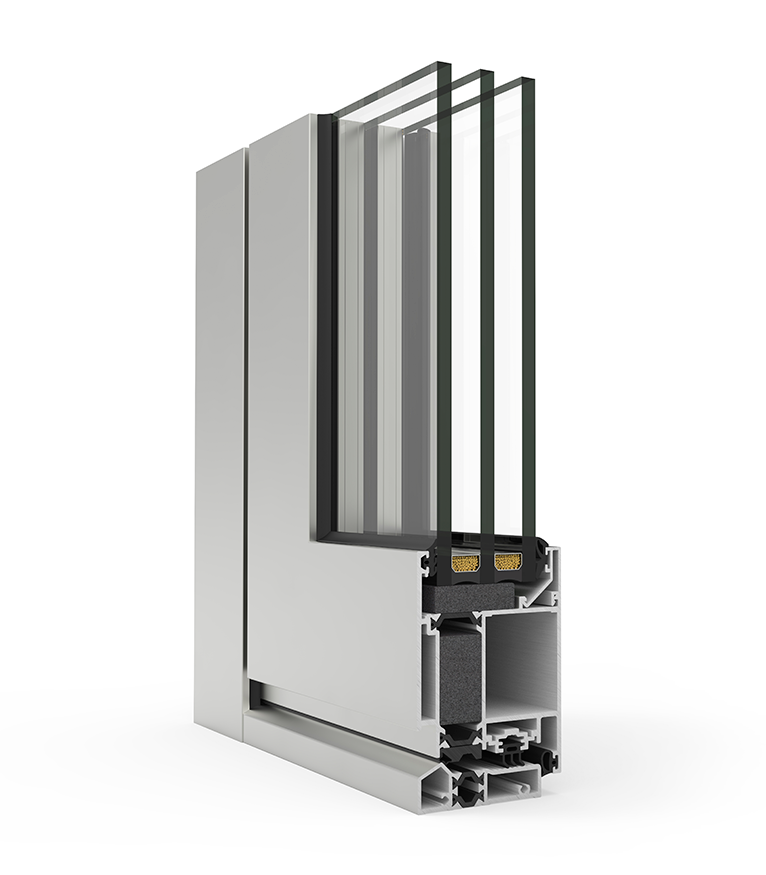

Cortizo Millennium Plus 70 Door

The Millennium Plus 70 Door is an aluminium Coplanar door entry system with straight lines and frame depth of 70 mm. This system allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations.

Resistance to repeated openings and closings (EN 1191:2000) : 1,000,000 cycles

Maximum glazing
54 mm

Possibility of hidden hinges

Cortizo Millennium+ 70 Aluminium Door

Maximum glazing thickness
54 mm

Opening possibilities
Open In: Side hung 1 or 2 sashes
Opening Out: Side hung 1 or 2 sashes
Automatic opening: Internal and external hinged single sash

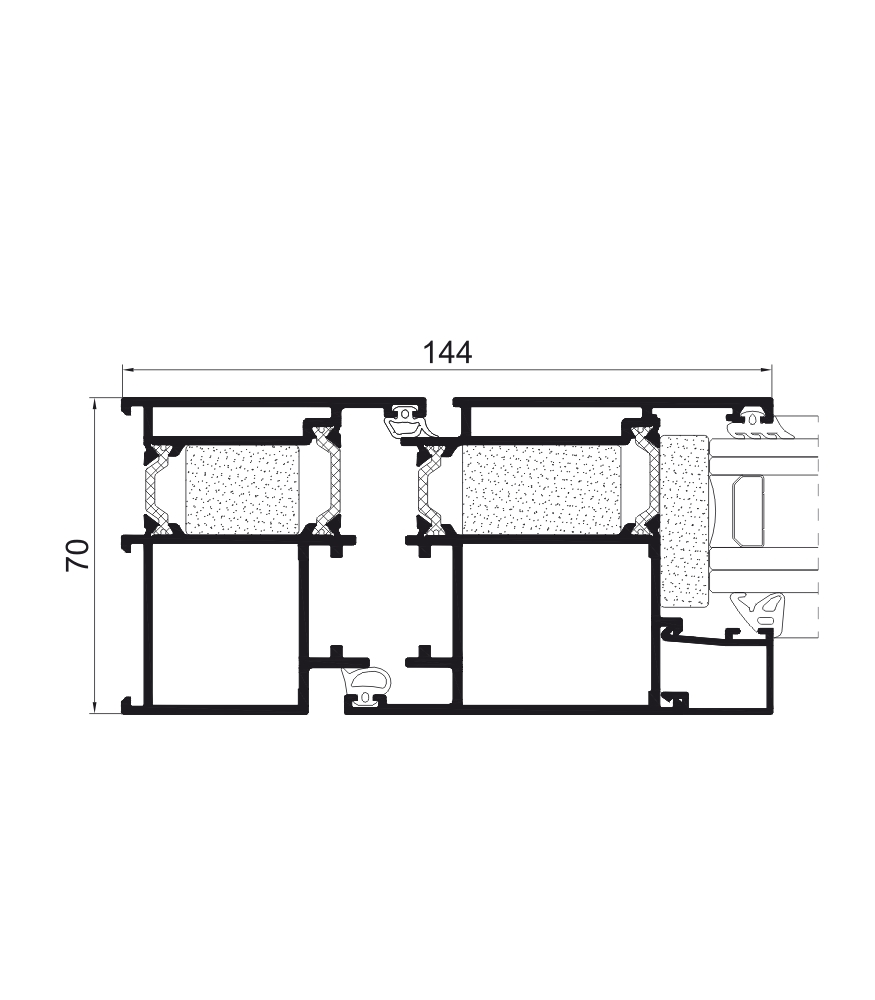

Sections
Frame – 70 mm / Sash – 70 mm

Profile thickness
Door 2.0 mm

Polyamide strip length
24 mm

Maximum dimensions/sash
Width (L) = 1,800 mm
Height (H) = 3,000 mm

Door
Width (L) = 1,500 mm
Height (H) = 3,000 mm

Hidden hinges door

Maximum weight/sash
220 kg

Please consult regarding maximum weight and dimensions according to types

Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
