CORTIZO
COR 80 HIDDEN SASH
TILT & TURN SYSTEM
Choose your product...
COR 80 Hidden Sash
TheCOR 80 Hidden Sash has an Elegant design with straight aesthetic in which the sash is concealed behind the frame, maximising the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance, prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.
Possibilities
» Security hardware
» Hinges Concealed
» Drainage Concealed
» Handle Concealed

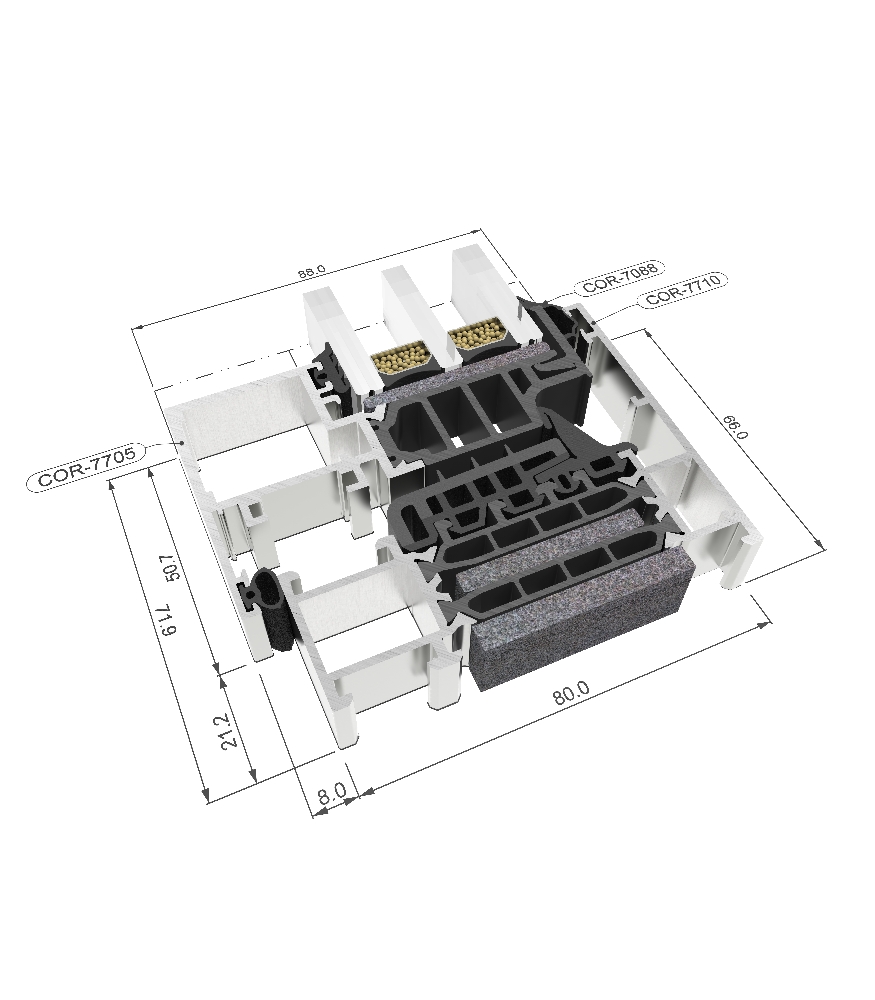

COR 80 HS
Glazing
Max. 51 mm
Min. 36 mm
Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
Sightlines
Frame 80 mm
Sash 80 mm
Profile thickness
Window 1.9 mm
Polyamide strip length
45 mm
Maximum sash dimensions
Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
