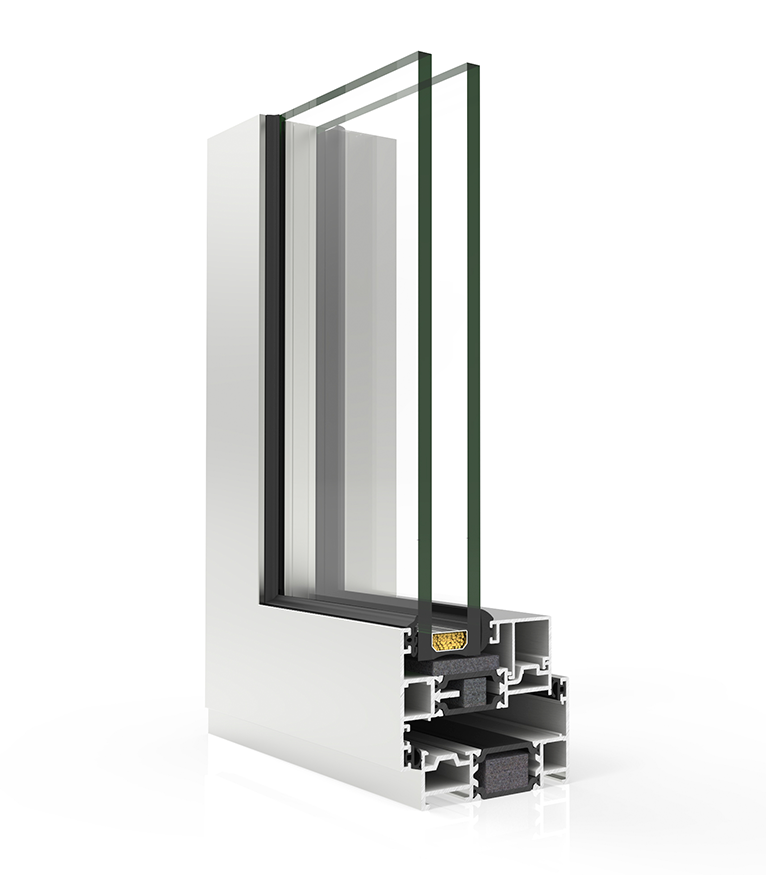

Casement System
Thermally broken window that allows for both side hung and top hung outward openings. This solution, with a thermal break zone of 32 mm and a transmittance Uw from 1.0 W/ m²K, has the British security certification PAS 24,being especially suitable for this market.
Possibilities
» Security hardware
» Concealed hinges
Casement System
Glazing
Max. 44 mm
Min. 23 mm
Opening possibilities:
Outward opening
Side hung
Top hung
Sightlines
Frame 70 mm
Sash 70 mm
Profile thickness
Window 1.6 mm
Polyamide strip length
32 mm
Maximum sash dimensions
Slim sash (Side hung)
Width (L) 950 mm
Height (H) 1,300 mm
Slim sash (Top hung)
Width (L) 1,200 mm
Height (H) 1,300 mm
Heavy duty sash (Side hung)
Width (L) 750 mm
Height (H) 1,750 mm
Heavy duty sash (Top hung)
Width (L) 1,800 mm
Height (H) 1,800 mm
Maximum sash weight
Side hung Slim sash: 35 kg
Top hung Slim sash: 50 kg
Side Hung Heavy duty sash: 42 kg
Top Hung Heavy duty sash: 100 kg
Consult maximum weight and dimensions according to typologies.
Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
